Example of work with Windows Forms

As another example of universality of MAPILab Explorer for SharePoint, let`s review the operations with class System.Windows.Forms.Form.

Open new script window and modify text of method Main the following way:
C#

using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Text;
using MAPILab.SharePoint.Explorer.CodeForm;
using MAPILab.SharePoint.Explorer.Utilities.ScriptRunner;
using System.Windows.Forms;

public class Tester
{
    static void Main(
         MAPILab.SharePoint.Explorer.CodeForm.MLCodeForm thisForm
        ,MAPILab.SharePoint.Explorer.Utilities.ScriptRunner.MLBrowser browser
        )
    {

        Form form = new Form();
        form.Text = "Hello From MAPILab Explorer For SharePoint";
        FlowLayoutPanel layoutPanel = new FlowLayoutPanel();
        form.Controls.Add(layoutPanel);
        layoutPanel.Dock = DockStyle.Fill;
        TextBox textBox = new TextBox();
        textBox.Text = "Enter you name";
        layoutPanel.Controls.Add(textBox);
        Button button = new Button();
        button.Text = "Click Me!";
        layoutPanel.Controls.Add(button);
        form.Show();

        // Output browser configuration
        //browser.Text = "Browser window";
        //browser.DisplayMode =
        MAPILab.SharePoint.Explorer.Utilities.ScriptRunner.DisplayMode.Expanded;
        browser.ReturnValue = form;
    }
}
Visual Basic

Visual Basic

Imports System
Imports System.Collections.Generic
Imports System.Diagnostics
Imports System.Text
Imports MAPILab.SharePoint.Explorer.CodeForm
Imports MAPILab.SharePoint.Explorer.Utilities.ScriptRunner
Imports System.Windows.Forms

Public Class Tester
    Shared Sub Main(ByVal thisForm
    As MAPILab.SharePoint.Explorer.CodeForm.MLCodeForm,
                    ByVal browser
                    As MAPILab.SharePoint.Explorer.Utilities.ScriptRunner.MLBrowser)

        Dim form
        As Form = new Form()
        form.Text = "Hello From MAPILab Explorer For SharePoint"
        Dim layoutPanel
        As FlowLayoutPanel = new FlowLayoutPanel()
        form.Controls.Add(layoutPanel)
        layoutPanel.Dock = DockStyle.Fill
        Dim textBox
        As TextBox = new TextBox()
        textBox.Text = "Enter you name"
        layoutPanel.Controls.Add(textBox)
        Dim button
        As Button = new Button()
        button.Text = "Click Me!"
        layoutPanel.Controls.Add(button)
        form.Show()

        ' Output browser configuration
        'browser.Text = "Browser window"
        'browser.DisplayMode =
        MAPILab.SharePoint.Explorer.Utilities.ScriptRunner.DisplayMode.Expanded

        browser.ReturnValue = form
    End Sub
End Class

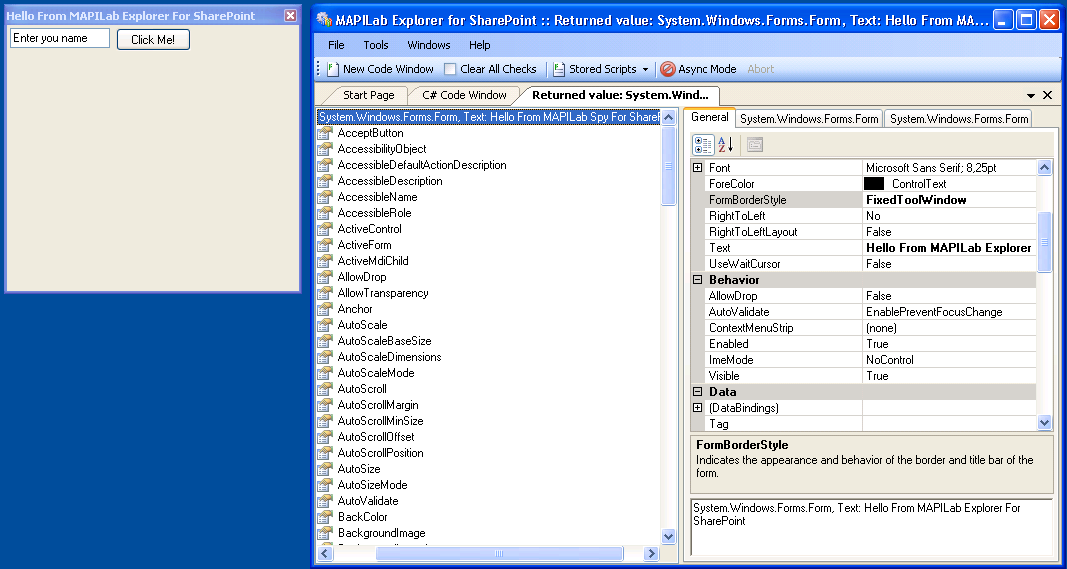

The given program code creates new window, adds several controls in it, after that it is displayed using method Show() and returns reference to window object for further investigation. The result of script execution looks the following way:

Windows form
Click to open real size screenshot

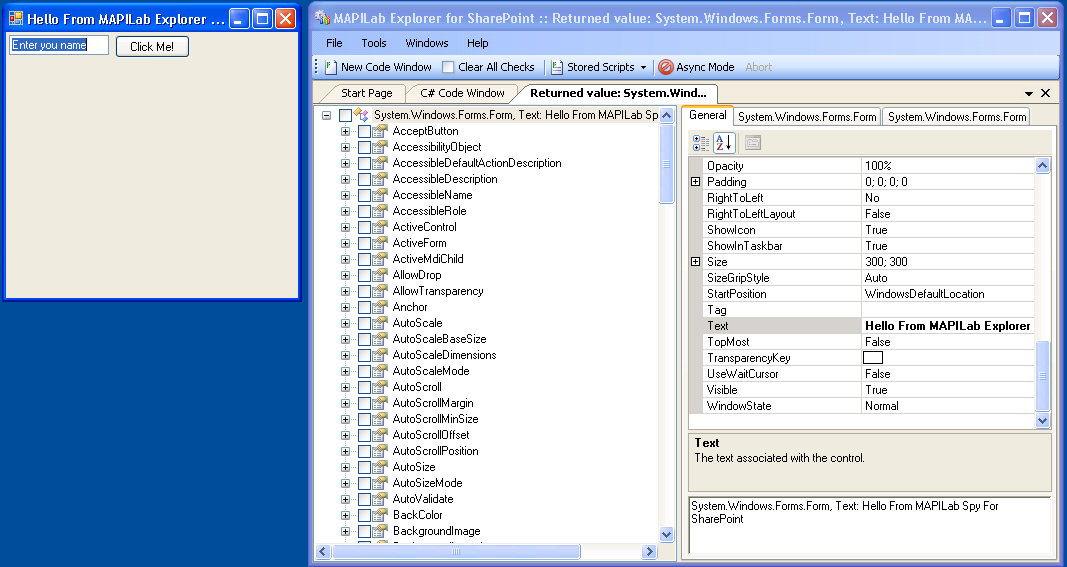

Here, pay attention that properties of created window may be changed. By changing properties (without closing anything), our window can be made to look the following way:

Windows form with changed properties
Click to open real size screenshot
